Grease Guardian Auto Fat Separators
Made in England
A grease separator is designed to separate fats in restaurants/kitchens in order to prevent the transfer of fats into the municipal sewage system.
It is mandatory to install a grease separator in every business that pumps grease into the municipal drainage system.
A fat separator is a container adapted to the size of the business according to the requirements of the Ministry of Health and the Ministry of Environmental Protection, for a fat separatorall the fluids drain from the business, and after separation the clean liquids from fats flow into the municipal sewage system.
X Range Series
Innovative fat and food waste management solution: Grease Guardian’s X-Series automatic fat separators
Cleanliness, efficiency, and innovation in your kitchen
Advanced X series fat separators – a quality solution for any professional kitchen
Inexhaustible advances in technology
Automatically degreases: excellent procedures of handling fats and food waste effortlessly.
Advanced digital system: Plan ahead for smooth and optimal operation.
Durability and quality above all
Made of strong stainless steel 304: maximum resistance to corrosion and abrasion.
3mm solid filter: effectively filters waste and solids.
Convenient and economical maintenance
Easy to install and maintain: A time- and cost-efficient solution.
Reduces pumping requirements: economic savings and reduction of maintenance costs.
Contributing to the environment
Possibility of waste recycling: environmentally friendly system, environmental awareness and responsibility.
Protects the drainage system: preventing clogs and maintaining the integrity of infrastructure.
Additional solutions for maximum comfort
Self-cleaning option available: Save time and effort.
No dose of enzymes or bacteria required: a cleaner and safer solution.
International Tested and Certified: Quality and Safety Guaranteed.
Extended warranty options: Peace of mind with full support.
Contact us now for more information!
Start upgrading your kitchen with Grease Guardian’s X-Series fat separators.

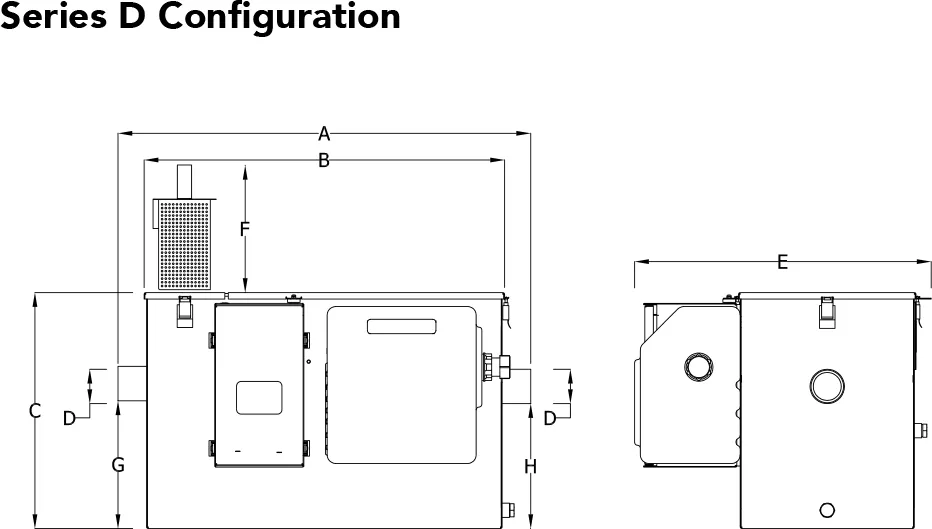

model | Length (A) | Length (B) | Height(C) | In/out (D) | Width (E) | Basket (F) | Input height (H) | Port height (H) | Maximum flow |
---|---|---|---|---|---|---|---|---|---|
GGX7(s) | 662 | 443 | 344 | 48 | 516 | 405 | 321 | 251 | 0.50 L/S |
GGX15 | 842 | 623 | 346 | 60 | 557 | 405 | 215 | 87 | 1.00 L/S |
GGX25 | 870 | 657 | 423 | 60 | 570 | 405 | 298 | 170 | 1.58 L/S |
GGX35 | 1092 | 873 | 422 | 89 | 577 | 405 | 281 | 170 | 2.21 L/S |
D1 | 643 | 543 | 326 | 60 | 515 | 174 | 150 | 150 | 0.75 L/S |
D1 | 643 | 543 | 326 | 60 | 515 | 212 | 115 | 115 | 0.75 L/S |
D2 | 723 | 623 | 415 | 60 | 515 | 212 | 224 | 219 | 1.25 L/S |
D3 | 812 | 712 | 453 | 90 | 515 | 290 | 311 | 263 | 1.75 L/S |
NS Range Series
AUTOMATIC FAT SEPARATORS NS RANGE
Our unique system – separation of products and solids that combines high efficiency and simplicity of use.
Our system provides advanced solutions for proper management of industrial projects and various fields.
A number of capabilities and advantages of our unique system:
Step 1: Separation of products and solids with tube connection (C)
A fast and efficient connection between the hose and the separation unit provides precise and efficient falling solids.
Washing System (W):
Adding an advanced washing system that ensures the unit remains clean and active over time.
Diaphragm pump (PD):
Unique design of the pump ensures high quality and efficiency in the discharge of solids.
Centrifugal pump (P):
Outstanding performance thanks to advanced centrifugal technology.
Diaphragm pump (P) and waste recycling (R):
High quality and efficiency in separating waste and fats from solids.
Step 3: Fill:
An efficient and fast process for filling the tanks automatically and accurately.
Step 2: Empty manually:
A simple and efficient system for manually emptying the tanks, which helps maintain stability and efficiently execute the processes.
Smart design:
Precise management of processes and tanks, with an external connection to the emptying pipe for environmental conservation and ease of maintenance.
Washing System (W):
Simple control and maintenance with the built-in flushing system.
Easy connection:
Easier connection to the emptying pipe that allows preservation and safety during emptying.
Our unique system was created to provide advanced and efficient solutions for the industrial field.
We believe that advanced knowledge and technology can improve the work experience and ensure excellent results.
We are here to help you improve your activities and make your processes more efficient
model | Flow rate | Number of meals per day | volume | Overall Length | Overall height | Width | Connection Diameter | |
---|---|---|---|---|---|---|---|---|
GGNS-C with tube connection | ||||||||
NS-4-C | 4 | 400 | 1451 | 2006 | 1363 | 1015 | 114 | |
NS-6-C | 6 | 600 | 2185 | 2565 | 1367 | 1100 | 129 | |
NS-10-C | 10 | 1000 | 3713 | 2880 | 1513 | 1475 | 168 | |
NS-15-C | 15 | 1500 | 5449 | 2945 | 1730 | 1475 | 219 | |
GGNS-C-W with hose connection and flushing system | ||||||||
NS-4-C-W | 4 | 400 | 1451 | 2006 | 1363 | 1015 | 114 | |
NS-6-C-W | 6 | 600 | 2185 | 2565 | 1367 | 1100 | 129 | |
NS-10-C-W | 10 | 1000 | 3713 | 2880 | 1513 | 1475 | 168 | |
NS-15-C-W | 15 | 1500 | 5449 | 2945 | 1730 | 1475 | 219 | |

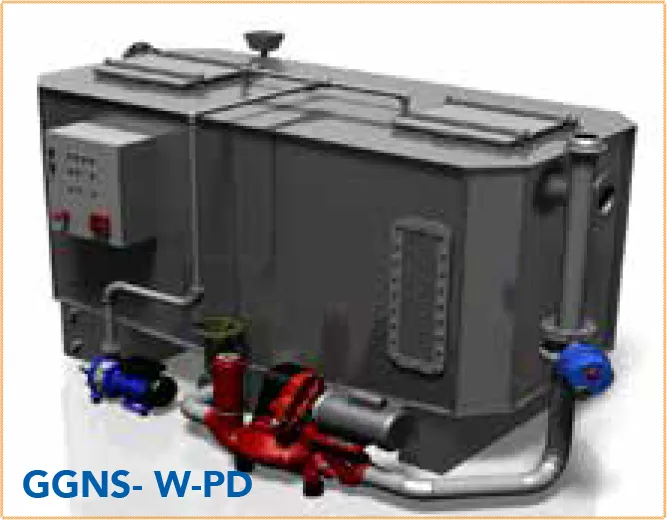

GGNS-WPD with hose connection Flushing system and diaphragm pump | ||||||||
NS-6-PD | 6 | 600 | 2185 | 2565 | 1367 | 1100 | 129 | |
NS-10-PD | 10 | 1000 | 3713 | 2840 | 1513 | 1475 | 168 | |
NS-15-PD | 15 | 1500 | 5449 | 2945 | 1730 | 1475 | 219 | |
NS-6-W-PD | 6 | 600 | 2185 | 2565 | 1367 | 1100 | 129 | |
NS-10-W-PD | 10 | 1000 | 3713 | 2840 | 1513 | 1475 | 168 | |
NS-15-W-PD | 15 | 1500 | 5449 | 2945 | 1730 | 1475 | 219 | |

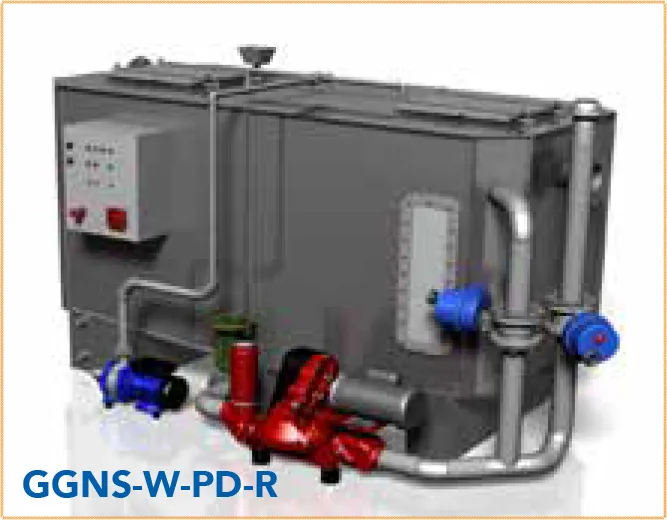

GGNS-W-PD-R with flushing system, diaphragm pump and recycling | ||||||||
NS-10-PD-R | 10 | 1000 | 3713 | 2840 | 1513 | 1475 | 168 | |
NS-15-PD-R | 15 | 1500 | 5449 | 2945 | 1730 | 1475 | 219 | |

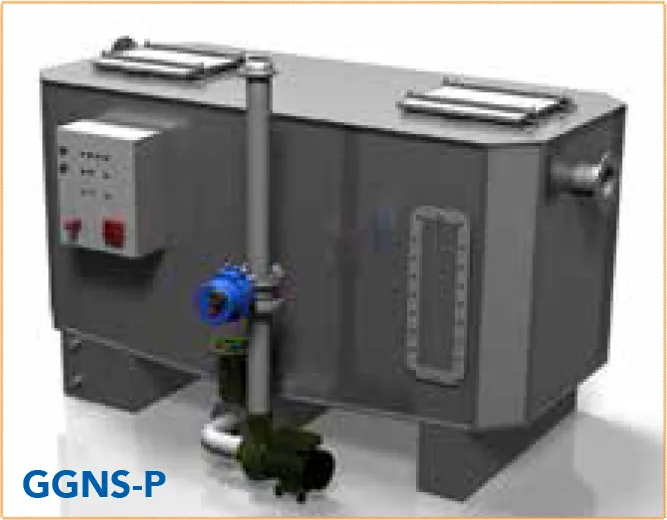

GGNS-P with centrifugal pump | ||||||||
NS-4-PC | 4 | 400 | 1451 | 2006 | 1363 | 1015 | 114 | |
NS-6-PC | 6 | 600 | 2185 | 2565 | 1367 | 1100 | 129 | |
NS-10-PC | 10 | 1000 | 3713 | 2880 | 1513 | 1475 | 168 | |
NS-15-PC | 15 | 1500 | 5449 | 2945 | 1730 | 1475 | 219 | |
GGNS-W-P with flushing system and centrifugal pump | ||||||||
NS-4-W-PC | 4 | 400 | 1451 | 2006 | 1363 | 1015 | 114 | |
NS-6-W-PC | 6 | 600 | 2185 | 2565 | 1367 | 1100 | 129 | |
NS-10-W-PC | 10 | 1000 | 3713 | 2880 | 1513 | 1475 | 168 | |
NS-15-W-PC | 15 | 1500 | 5449 | 2945 | 1730 | 1475 | 219 |
